Revista Mexicana de Ciencias Forestales  Vol. 11 (58)

Marzo – Abril (2020)

Fecha de recepción/Reception date: 12 de agosto de 2019

Fecha de aceptación/Acceptance date: 29 de enero de 2020

_______________________________

1Campo Experimental Saltillo. CIR-Noreste, Instituto Nacional de Investigaciones Forestales, Agrícolas y Pecuarias. México.

2Departamento Forestal, Universidad Autónoma Agraria Antonio Narro. México.

Autor por correspondencia; correo-e: villavicencio.edith@inifap.gob.mx

Resumen

Litsea parvifolia es un arbusto, perenne de la familia Lauraceae, cuya biomasa foliar es su componente principal. Sus hojas se aprovechan y comercializan en el sureste de Saltillo y alrededores. En fresco, tiene uso culinario y medicinal; en seco, como condimento. Con el propósito de generar información básica para la regulación de su aprovechamiento, se planteó seleccionar un modelo alométrico para predecir la biomasa foliar seca y elaborar una tabla de producción para arbustos en pie. Se evaluaron algunas poblaciones naturales, en las que se registró la altura total (H) y diámetro promedio (Dp) de todos los individuos en pie y se determinó la biomasa foliar seca (Bfs). Se probaron nueve modelos alométricos mediante el procedimiento PROC MODEL en SAS 9.4, para elegir aquel con el mayor coeficiente de determinación ajustado (); el valor más bajo en la raíz cuadrada media del error (), en el coeficiente de variación () y en la suma de cuadrados de los residuales (SCR); además de la significancia de sus parámetros (). El Dp y la H se correlacionaron con la Bfs. El modelo Schumacher-Hall no lineal es confiable estadísticamente (p < 0.0001), registra los mejores estadísticos, con presencia de heteroscedasticidad, efecto corregido con regresión ponderada con estructura de varianza (Dp2H)-0.5, una R2Aj. de 0.82, Sxy de 18.41 g y un CV de 44.93 %. El modelo puede usarse para predecir la producción de Bfs en sitios con características ecológicas similares al área de estudio.

Palabras clave: Alometría, biomasa, hoja seca, manejo forestal, no maderable, regresión ponderada.

Abstract:

Litsea parvifolia is an ever-green shrub of the Lauraceae family whose foliar biomass is its main component. Its leaves are harvested and marketed in and around the southeastern region of Saltillo municipality, Coahuila State. Fresh, it has culinary and medicinal use; dry, it is used as condiment. In order to regulate its use and determining its stock, an allometric model was selected to estimate the dry foliar biomass and the elaboration of a production table of the standing shrubs was planned as well. Natural populations were evaluated, recording the total height (H, cm) and mean diameter (Dp, cm) of the shrub crown, considering all categories of height and cover of standing shrubs and dry leaf biomass (Bfs, g). Ten allometric models were evaluated using the PROC MODEL procedure in SAS, version 9.4. Dp and H are correlated with laurel Bfs. The Schumacher-Hall model in its non-linear form is statistically reliable (p <0.0001) as it records the best statistics, with presence of heteroscedasticity, corrected effect with a weighted regression with variance structure (Dp2H)-0.5, obtaining an R2aj. of 0.82, Sxy of 18.41 g and a CV of 44.93 %. The model can be used to estimate the production of Bfs in places with similar ecological characteristics to the study area.

Key words: Allometry, biomass, dry leaf, forest management, non-timber, weighted regression.

Introduction

Non-timber forest products (NTFPs) are vastly important as goods and services, primarily in rural communities, as they have a variety of uses —nutritional, cultural, medicinal, and industrial—, and, in general, they are in high demand in foreign trade (Chandrasekharan et al., 1996).

The native distribution area of Litsea parvifolia (Hemsl.) Mez. (laurel) is northeastern Mexico, with seven recognized species of this genus. It grows in humid areas, pine-oak forests, and semi-desert shrublands; it grows at altitudes of 1 000 to 3 000 m, but with a restricted distribution in the states of Coahuila, Nuevo León and Tamaulipas (Van Der Werff and Lorea, 1997; Jiménez-Pérez and Lorea-Hernández, 2009).

According to the Codex Alimentarius Commission of the United Nations’ Food and Agriculture Organization (FAO) and the Mexican Official Norm PROY-NOM-000-SCFI/SADER-2019 on Spices and Cooking or Aromatic Herbs, dry Mexican bay leaves —whole, crushed or ground— are used in cooking due to their flavor, aroma and visual aspect, and their primary function is to provide a fragrant, aromatic or pungent seasoning to foods (CODEX, 2017).

From the medicinal point of view, it is prepared as an infusion tea in order to relieve digestive disorders such as diarrhea and indigestion, as well as fever and nervousness; in addition, its maceration in alcohol is used for healing rheumatism. In some cases, the plant is given a ceremonial and ornamental use (Jiménez-Pérez et al., 2011).

Biomass is the amount of living organic matter present in the stems, leave and bark (aerial biomass), as well as in the roots (underground biomass) (Brown, 1997). In forest terms, biomass is utilized to determine the carbon content per unit of surface area and, thus, to calculate the fixing capacity of the ecosystems (Ordóñez et al., 2015).

Allometric models are tools for predicting biomass components of the plant (leaves, branches, roots, etc.) based on one or more easily measured variables (diameter, height) and thus express their mean content at the genus or species level (Avery and Burkhart, 1983; Picard et al., 2012; Gaillard et al., 2013). A production table summarizes these calculations, whose application, however, is restricted to regions with similar ecological characteristics to those of the area for which they were made (Ramos-Uvilla et al., 2014).

Several allometric models have been generated in arid zones for predicting the biomass of trees and shrubs like Prosopis glandulosa Torr. (Méndez et al., 2012), Acacia pennatula (Schltdl. & Cham.) Benth. (López-Merlín et al., 2003), Larrea tridentata (DC.) Coville (Ludwig et al., 1975), Atriplex canescens (Pursh) Nutt. var. canescens (Thomson et al., 1998), Lippia graveolens Kunth (Villavicencio et al., 2018), and in fiber producing species such as Yucca carnerosana Trel. (Villavicencio and Franco, 1992), Agave lechuguilla Torr. (Berlanga et al., 1992; Velasco et al., 2009) and Nolina cespitifera Trel. (Sáenz and Castillo, 1992), or even the weight of the stem or “cone” in Dasylirion cedrosanum Trel. (Cano et al., 2006).

Because leaves of L. parvifolia are one of the most exploited and commercialized components in arid zones, the objective of the present study was to determine the mensuration variable or variables of the plant that are directly correlated to dry leaf biomass, once the most suitable allometric model for predicting the weight of the dry leaves has been selected, and, based on it, to develop a production table that may serve to evaluate the natural Mexican bay populations existing in Saltillo municipality, Coahuila State, Mexico.

Materials and Methods

Study area

The study was carried out in Cuauhtémoc ejido, in Saltillo, Coahuila, located at 25°17'3.61" N and 100°56'57.99" W (RAN, 2018) (Figure 1). The soil type is Leptosol (Inegi, 2006 a); the climate is BS1kw (semi-arid, temperate); the mean annual temperature ranges between 12 and 18 °C, and the precipitation, between 500 and 800 mm (Inegi, 2006b; Inegi, 2007; Inegi, 2008). The vegetation consists of conifer forests, rosetophile scrubs, sub-montane shrubs and grasslands (Profauna, 2008).

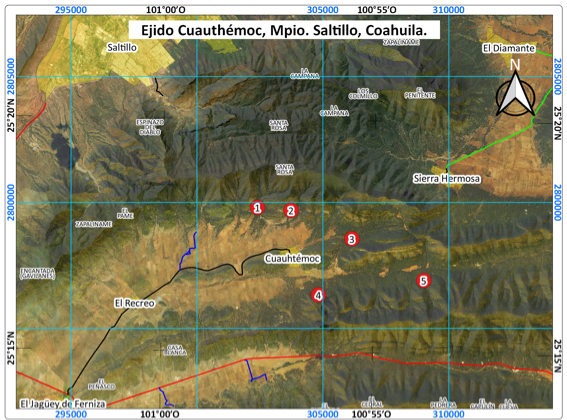

Figure 1. Geographical distribution of the localities where the Litsea parvifolia (Hemsl.) Mez. populations were assessed, in Saltillo municipality, Coahuila.

Sampling design and estimation of variables

According to a directed sampling, a total of 156 L. parvifolia plants were selected, considering all the categories of height and crown diameter. The measured variables were total height from ground level (H, cm), and larger (DM, from its acronym in Spanish) and smaller (Dm, from its acronym in Spanish) crown diameter, which were made with a 21601 Pretul™ professional flexometer. The mean diameter (Dp, from its acronym in Spanish) of the leaf coverage of the shrub was estimated in terms of the measurement of two perpendicular diameters (DM and Dm) of each shrub, both of which were expressed in centimeters (cm). A destructive sampling was applied, in which the stems and leaves of each selected plant were cut. The samples were kept in paper bags with their corresponding label and were subsequently dehydrated in the greenhouse of the Saltillo Experimental Station of the Instituto Nacional de Investigaciones Forestales, Agrícolas y Pecuarias, INIFAP at ambient temperature during five days, after which the stems were separated from the leaves. The dry leaf biomass (Bfs) was determined using an ADAMTM analytical scale with 0.001 g accuracy. Thus, the dependent variable was Bfs, and the independent variables, H and Dp.

Statistical analysis

The data of the dry leaf biomass and the variables height and mean diameter were analyzed using the PROC MODEL of SAS (Statistical Analysis System) software, version 9.4 (SAS, 2017), with Ordinary Least Squares (OLS) regression. Nine allometric models were fitted; these had been previously evaluated in similar studies on oregano (Villavicencio et al., 2018), lechuguilla (Velasco et al., 2009), mesquite (Méndez et al., 2012), and acacias (López-Merlín et al., 2003) (Table 1). These models provide a perfect description of the relationship between forest mensuration variables and the biomass.

Table 1. Models fitted for predicting the dry leaf biomass of Litsea parvifolia (Hemsl.) Mez. at Cuauhtémoc ejido, in Saltillo, Coahuila.

Sources: Segura and Andrade (2008); Picard et al. (2012).

Bfs = Dry leaf biomass (g); Dp = Mean crown diameter (cm); H = Total height (cm); Β0 ..., βn = Regression coefficients, Exp = Exponential of the expression.

Model selection criteria

The statistical parameters for the selection f the best model were: a higher value of the adjusted coefficient of determination (), a lower value for the quadratic mean error (RMSE), the coefficient of variation (CV), and the quadratic sum of the residuals (QSR); also considered was the significance of its parameters () (Segura and Andrade, 2008; Picard et al., 2012). The Shapiro-Wilk test for the verification of the normality of the residuals (Pedrosa et al., 2015) and the Durbin-Watson statistic (d) in order to detect the self-correlation (Gujarati and Porter, 2010). The presence of heteroskedasticity was corrected by performing a weighted regression, using the Dp and the H in various forms as weighting structures (Schreuder and Williams, 1998). The predictive capacity of the model was determined through the percentage mean error (EMP) and the added difference (DA) (Cruz and Uranga-Valencia, 2013):

Where:

EMP = Percentage mean error

Yi = Observed values

Yest = Estimated values

DA = Added difference

Results and Discussion

The average dry leaf biomass of L. parvifolia per plant in the study area was 40.99 g. with a variation of 1.80 to 246.32 g, and it became evident that the morphological variation and factors such as competition determined its production (Foroughbakhch et al., 2009); furthermore, it is indicative of the productivity of the forest ecosystem as mentioned by Huff et al. (2018) (Table 2).

Table 2. Descriptive statistic of Litsea parvifolia (Hemsl.) Mez. at Cuauhtémoc ejido. Saltillo, Coahuila.

H = Total height; Dp = Mean diameter per crown (DM + Dm) /2; Bfs = Dry leaf biomass; DE = Standard deviation (g); CV = Coefficient of variation (%).

According to the results of the nine adjusted models: seven had a higher adjR2 above 0.70, which indicates that the variability of the dry leaf biomass of L. parvifolia can be accounted for in 70 % by the average crown diameter and the total height of the plant. The Sxy varied from 17.56 to 25.81 g, and the CV was 42.84 to 62.96 % G (Table 3). According to the selection criteria, the Schumacher-Hall model (6) was the one that best estimated the foliar biomass of L. parvifolia.

Table 3. Regression coefficients and goodness-of-fit statistics of the models for predicting the dry leaf biomass of Litsea parvifolia (Hemsl.) Mez. at Cuauhtémoc ejido, Saltillo, Coahuila.

adjR2 = Adjusted coefficient of determination; Sxy = Standard error of the model (g); CV = Coefficient of variation (%); QSR = Quadratic sum of the residuals.

Due to its simplicity and to its good fit, the Schumacher-Hall model is widely utilized to predict the volume, the carbon content (Cruz et al., 2016), and the leaf biomass in shrub taxa (Villavicencio et al., 2018). In models generated for aromatic species such as oregano (Villavicencio et al., 2018) and thyme (Belmonte and López, 2003), the variables height and diameter are also the best biomass predictors, as was the case of L. parvifolia.

The Durbin-Watson statistic (d) (2.03) with n = 142, k = 3,  = 0.05,  (lower limit) and  (upper limit) proved that the residuals of the Schumacher-Hall model exhibited no self-correlation; this was not the case with the normality or with the variance homogeneity (Table 4). Therefore, a weighted regression was carried out using this same model as proposed by Walpole et al. (2012).

Table 4. Weighting factors for the Schumacher-Hall model, homoskedasticity tests, and tests of normality of the residuals.

F.P. = Weighting factor; Dpc = Average diameter of the leaf coverage of the shrub; H = Total height; c and k = parameters of the variance model; Resid. = Residuals; Bfs = Dry leaf biomass.

Weighted regression with variance structure

In order to correct the heteroskedasticity of the Schumacher-Hall model, several weighting factors were tested according to Álvarez-González (2007), Gómez-García (2013), and Pedrosa et al., (2015); the variables Dp and H were utilized as a weighting factor () for this purpose, using the PROC MODEL tool of the SAS software, and the term () was proven to satisfactorily correct the heteroskedasticity of the model. The adjR2 and Sxy were similar with and without weighting (tables 3 and 4). The statistic  increased with the weighting, which suggested that the residuals are closer to a normal distribution (Table 4). The residuals exhibit heteroskedasticity when the model is not weighted (Figure 2c), and homoscedasticity when it is (Figure 2d).

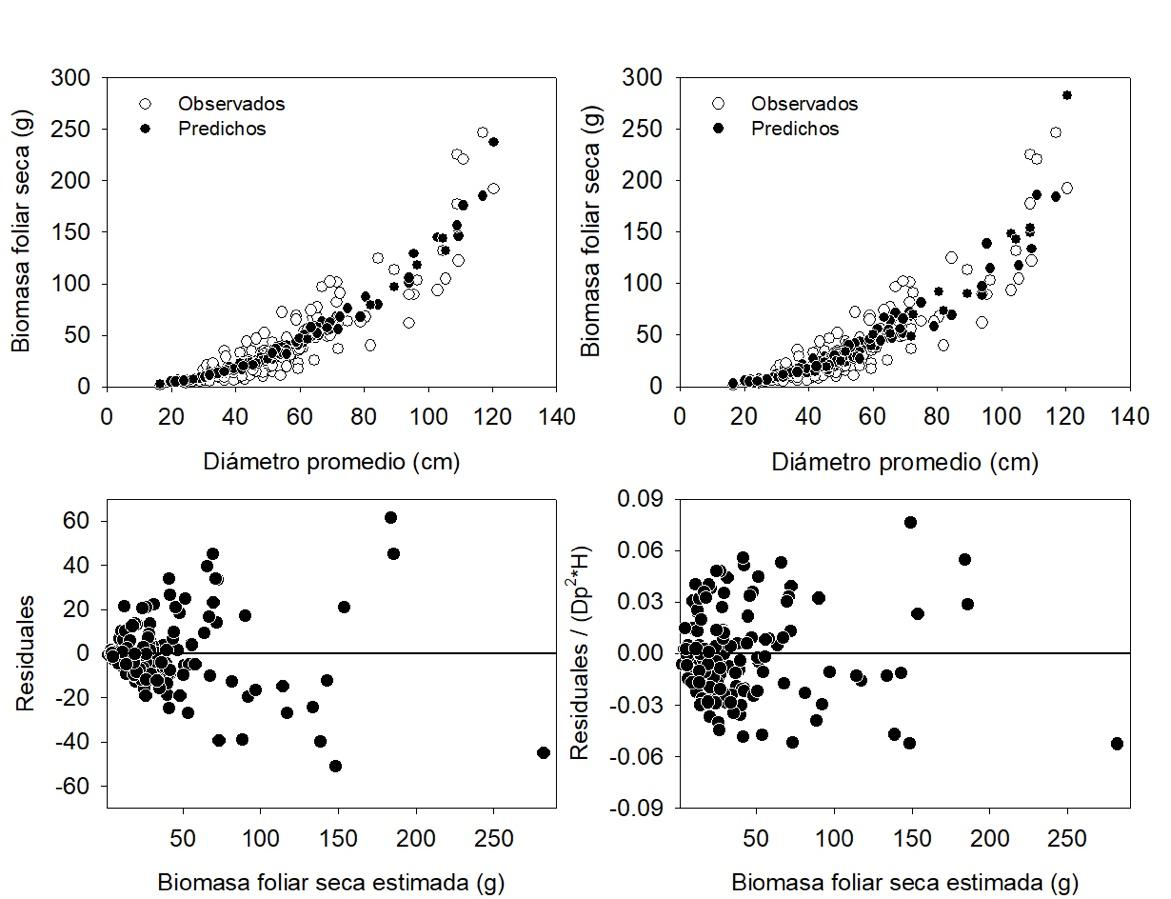

Biomasa foliar seca estimada = Estimated dry leaf biomass; Residuales = Residuals; Diámetro promedio = Mean diameter; Observados = Observed; Predichos = Predicted.

Figure 2. Estimated dry leaf biomass of Litsea parvifolia (Hemsl.) Mez. without (a) and with weighting (b); estimated residuals without weighting (c) and with weighting factor (d).

Differences were observed between the predicted weighted and unweighted values, in absolute (i.e. observed minus predicted) terms. The weighted values overestimate the dry leaf biomass by 9.5 g, while the unweighted ones overestimate it only by 6.3 g, less than 0.10 % of the total. Nevertheless, fulfillment of the assumptions of the regression models (for the weighted model) is preferable, as it ensures efficient predictions. Because the Schumacher-Hall model corrects the heteroskedasticity completely and is statistically reliable (P < 0.0001), it can be utilized to predict the production of L. parvifolia dry leaf biomass.

The corrected goodness-of-fit statistics were: adjR2 = 0.8252, estimation error = 18.42 g (Table 4), and statistical significance in all the parameters (P ≤ 0.05). These results adjust to the requirements of Picard et al. (2012) for the selection of a model; furthermore, they are within the interval cited by Návar et al. (2002) and Návar et al. (2004) for 18 shrub species of the Tamaulipan shrub, where leaf biomass prediction models with R2 = 0.56 to 0.93, error = 0.026 to 0.396 kg, and C. V. = 14 to 81 % were generated. Similar values have also been documented for shrub taxa used as forage, as firewood, and for medicinal purposes, in which R2 varies between 0.45 and 0.99 (Foroughbakhch et al., 2005; Foroughbakhch et al., 2009). Huff et al. (2018) register a Sxy of 33.2 to 441.9 g for shrubs. In most cases, the diameter and coverage were the independent variables utilized for predicting the production of leaf biomass; in the present study, the heterosedasticity was corrected by including the height variable.

In the face of the lack of normality and the presence of heterosedasticity, as in the case of L. parvifolia, authors like Gómez-García (2013) carried out a weighted regression with a variance model, based on the diameter, the height () and  in Betula pubescens Ehrh. and Quercus robur L. Flores et al. (2018) utilized height () and  in Arbutus arizonica (A. Gray) Sarg.; Schreuder and Williams (1998) suggested utilizing the variables diameter and height [ and ()] interchangeably in tree species, as they provide similar results. Villavicencio et al. (2018) used the diameter and the height () in aromatic shrubs like oregano (Lippia graveolens).

Model for predecting Litsea parvifolia (Hemsl.) Mez. dry leaf biomass

Unweighted Schumacher-Hall model:

                                                        1)

Schumacher-Hall model corrected by a weighting factor:

                                                        2)

The results evidenced an added difference (DA) of 0.06 g of average error in the estimation of the dry leaf biomass per plant, with a mean percentage error (EMP) of 0.16 %. According to Prodan et al. (1997), an EMP of less than 1 % ensures the validity of the model; thus, the Schumacher-Hall model is adequate for the interval of observed values, and it is statistically effective for predicting the dry leaf biomass of L. parvifolia.

A double-entry table with an operation interval is 5 to 120 cm for both independent variables (H and Dp) based on the selected variables in the Schumaher-Hall model. Within this model, there are intervals every 5 cm in which the dry leaf biomass (Bfs) (g) of the standing L. parvifolia plants can be predicted (Table 5). This prediction table facilitates the quantification in the field and is easy to use.

Table 5. Litsea parvifolia (Hemsl.) Mez. dry leaf biomass (g) Litsea parvifolia (Hemsl.) Mez. for natural stands of Cuauhtémoc ejido, Saltillo, Coahuila.

Conclusions

The Schumacher-Hall model is the one that best predicts the dry leaf biomass of the standing Litsea parvifolia (Hemsl.) Mez. bushes, based on simple measurements of variables as the mean diameter of the crown and total height of the bush. The double-entry prediction table generated can be applied in areas where plants of this species occur with structures of similar diameter, height and climate conditions to those observed in this study.

Acknowledgements

The authors wish to thank the Conafor-Conacyt Sectoral Fund for its support to the project registered with the SIGI number 13271734312 titled: “Development and implementation of two processing systems for a) the extraction of essential oils and b) the extraction of ixtle fiber: generation of high quality products”. To the Saltillo CIRNE-INIFAP Experimental Station for the complementary support for the realization of the said project, and to the Universidad Autónoma Agraria Antonio Narro for facilitating the training of human resources.

Conflict of interests

The authors declare no conflict of interests.

Contribution by author

Eulalia Edith Villavicencio-Gutiérrez: field data collection, drafting of the manuscript, result analysis, review and editing of the document; Santiago Mendoza-Morales: bibliographical research and modeling of results; Jorge Méndez González: result analysis, review and editing of the document.

References

Avery, T. E. and H. E. Burkhart. 1983. Forest Measurement. McGraw-Hill. New York, NY, USA. 458 p.

Álvarez-González, J. G.; R. Rodríguez-Soalleiro. y A. Rojo-Alboreca. 2007. Resolución de problemas del ajuste simultáneo de sistemas de ecuaciones: heterocedasticidad y variables dependientes con distinto número de observaciones. Sociedad Española de Ciencias Forestales 23: 35-42. Doi:10.31167/csef.v0i23.9603.

Belmonte S., F. y F. López B. 2003. Estimación de la biomasa de una especie vegetal mediterránea (tomillo Thymus vulgaris) a partir de algunos parámetros de medición sencilla. Ecología (17): 145-151. https://dialnet.unirioja.es/ejemplar/87016              (4 de febrero de 2019).

Berlanga R., C. A., L. A. González L. y H. Franco L. 1992. Metodología para la evaluación de lechuguilla en condiciones naturales. Folleto Técnico Núm. 1. Campo Experimental Saltillo CIRNE-INIFAP. Saltillo, Coah., México. 22 p.

Brown, S. 1997. Estimating biomass and biomass change of tropical forests: a Primer. (FAO Forestry Paper - 134). FAO. Rome, Italy. 55 p.

Cano P., A., O. Martínez B., C. A. Berlanga R., E. E. Villavicencio G. y D. Castillo Q. 2006. Guía para la evaluación de existencias de sotol (Daylirion cedrosanum Trel.) en poblaciones naturales del Estado de Coahuila. Folleto Técnico Núm. 43. Campo Experimental Saltillo CIRNE-INIFAP. Saltillo, Coah., México. 20 p.

Chandrasekharan, C., T. Frisk. y J. Campos R. 1996. Desarrollo de productos forestales no maderables en América Latina y el Caribe. Serie Forestal Núm. 5. Dirección de productos forestales, FAO. Roma para m´rica Latina y El Caribe. Santiago, Chile. 63 p. http://www.fao.org/3/a-t2360s.pdf  (20 de febrero de 2019).

Comisión del CODEX Alimentarius (CODEX). 2017. Programa conjunto sobre normas alimentarias de la FAO/OMS. Informe de la 3ª. sesión del Comité del CODEX sobre especias y hierbas culinarias. 44ª. sesión CICG. Ginebra, Suiza. pp. 17-22. http://www.fao.org/fao-who-codexalimentarius/sh-proxy/en/?lnk=1&url=https%253A%252F%252Fworkspace.fao.org%252Fsites%252Fcodex%252FMeetings%252FCX-736-(03%252FReport%252FFinal%252520Report%252FREP17_SCHs.pdf (2 de julio de 2017).

Cruz de L., G. and L. P. Uranga-Valencia. 2013. Theoretical evaluation of Huber and Smalian methods applied to tree stem classical geometries. Bosque 33(3): 311-317. Doi: 10.4067/S0717-92002013000300007.

Cruz C., F., R. Mendía S., A. A. Jiménez F., J. A. Nájera L. y F. Cruz G. 2016. Ecuaciones de volumen para Arbutus spp. (madroño) en la región de Pueblo Nuevo, Durango. Investigación y Ciencia 24(68): 41-47. http://www.redalyc.org/jatsRepo/674/67448742006/html/index.html (13 de noviembre de 2019).

Flores M., F., D. J. Vega-Nieva, J. J. Corral-Rivas, J. G. Álvarez-González, A. D. Ruiz-González, C. A. López-Sánchez y A. Carillo P. 2018. Desarrollo de ecuaciones alométricas de biomasa para la regeneración de cuatro especies en Durango, México. Revista Mexicana de Ciencias Forestales 9(46): 157-185.                                      Doi: 10.29298/rmcf.v9i46.119.

Foroughbakhch, R., G. Reyes, M. A. Alvarado V., J. Hernández P. and A. Rocha E. 2005. Use of quantitative methods to determine leaf biomass on 15 woody shrub species in northeastern Mexico. Forest Ecology and Management 216(1/3): 359–366. Doi: 10.1016/j.foreco.2005.05.046.

Foroughbakhch, R., J. Hernández-Piñero, M. A. Alvarado-Vázquez, E. Céspedes-Cabriales, A. Rocha-Estrada and M. L. Cárdenas-Ávila. 2009. Leaf biomass determination on woody shrub species in semiarid zones. Agroforestry Systems 77(3): 181–192. Doi: 10.1007 / s10457-008-9194-6.

Gaillard B., C., M. Pece, M. Juárez d. G., G. Gómez. y M. Zárate. 2013. Modelización de funciones para estimar biomasa aérea individual de piquillín (Condalia microphylla Cav, Ramnacea) y tala chiquito (Celtis pallida Torr, Celtidacea) en la provincia de Santiago del Estero, Argentina. Revista de Ciencias Forestales - Quebracho 21(1-2): 46-57. https://www.researchgate.net/publication/262434949_Modelizacion_de_funciones_para_estimar_biomasa_aerea_individual_de_piquillin_Condalia_microphylla_Cav_Ramnacea_y_tala_chiquito_Celtis_pallida_Torr_Celtidacea_en_la_provincia_de_Santiago_del_Estero (7 marzo 2019)

Gómez-García, E., F. Crecente-Campo y U. Diéguez-Aranda. 2013. Tarifas de biomasa aérea para abedul (Betula pubescens Ehrh.) y roble (Quercus robur L.) en el noroeste de España. Madera y Bosques 19(1): 71-91. Doi: 10.21829/myb.2013.191348.

Gujarati, D. G. y D. C. Porter. 2010. Econometría. McGraw-Hill. México, D.F., México. 921 p.

Huff, S., K. P. Poudel, M. Ritchie and H. Temesgen. 2018. Quantifying above ground biomass for common shrubs in northeastern California using nonlinear mixed effect models. Forest Ecology and Management (424): 154–163. Doi:10.1016/j.foreco.2018.04.043.

Instituto Nacional de Estadística y Geografía (Inegi). 2006a. Conjunto de datos vectorial Edafológico escala 1:250 000 serie II. Continuo Nacional (Monterrey). https://www.inegi.org.mx/app/biblioteca/ficha.html?upc=702825236182               (7 de septiembre de 2018).

Instituto Nacional de Estadística y Geografía (Inegi). 2006b. Conjunto de datos vectoriales escala 1:1 000 000. Precipitación media anual. https://www.inegi.org.mx/app/biblioteca/ficha.html?upc=702825236182               (7 de septiembre de 2018).

Instituto Nacional de Estadística y Geografía (Inegi). 2007. Conjunto de datos vectoriales escala 1:1 000 000. Temperatura media anual. https://www.inegi.org.mx/app/biblioteca/ficha.html?upc=702825236182              (7 de septiembre de 2018).

Instituto Nacional de Estadística y Geografía (Inegi). 2008. Conjunto de datos vectoriales escala 1:1 000 000. Unidades climáticas. https://www.inegi.org.mx/app/biblioteca/ficha.html?upc=702825236182                (7 de septiembre de 2018).

Jiménez-Pérez, N. D. C. and F. G. Lorea-Hernández. 2009. Identity and delimitation of the American species of Litsea Lam. (Lauraceae): a morphological approach. Plant Systematics and Evolution 283(1-2): 19-32. Doi: 10.1007 / s00606-009-0218-0.

Jiménez-Pérez, N. D. C., F. Lorea-Hernández, C. K. Jankowski and R. Reyes-Chilpa. 2011. Essential oils in mexican bays (Litsea spp., Lauraceae): Taxonomic assortment and ethnobotanical implications. Economic Botany 65(2): 178–189. Doi:10.1007/s12231-011-9160-5.

López-Merlín D., L. Soto-Pinto, G. Jiménez-Ferrer y S. Hernández-Daumás. 2003. Relaciones alométricas para la predicción de biomasa forrajera y leña de Acacia pennatula y Guazuma ulmiflora en dos comunidades del norte de Chiapas. Interciencia. 8:334-339. http://ve.scielo.org/scielo.php?script=sci_arttext&pid=S0378-18442003000600005&lng=es&nrm=iso (21 de octubre de 2019).

Ludwig J. A., J. F. Reynolds and P. D. 1975. Size-biomass relationships of several Chihuahuan Desert shrubs. The American Midland Naturalist. 94 (2): 451-461.     Doi: 10.2307/2424437.

Méndez G., J., O. A. Turlan M., J. C. Ríos S., y J. A. Nájera L. 2012. Ecuaciones alométricas para estimar biomasa aérea de Prosopis laevigata (Humb. & Bonpl. ex Willd.) M.C. Johnst. Revista Mexicana de Ciencias Forestales 3(13): 57-72.          Doi: 10.29298/rmcf.v3i13.489.

Návar, J., J. Nájera and E. Jurado. 2002. Biomass estimation equations in the Tamaulipan thornscrub of north-eastern México. Journal of Arid Environments 52(2): 167-179. Doi:10.1006/jare.2001.0819.

Návar, J., E. Méndez, J. Graciano, V. Dale and B. Parresol. 2004. Biomass equations for shrub species of Tamaulipan thornscrub of North-eastern México. Journal of Arid Environments 59(4): 657–674. Doi:10.1016/j.jaridenv.2004.02.010.

Ordóñez D., J. A. B., R. Rivera V., M. E. Tapia M. y L. R. Ahedo H. 2015. Contenido y captura potencial de carbono en la biomasa forestal de San Pedro Jacuaro, Michoacán. Revista Mexicana de Ciencias Forestales 6(32): 7–16.                                   Doi: 10.29298/rmcf.v6i32.95.

Pedrosa, I., J. Juarros-Basterretxea, A. Robles-Fernández, J. Basteiro y E. García-Cueto. 2015. Pruebas de bondad de ajuste en distribuciones simétricas, ¿qué estadístico utilizar? Universitas Psychologica 14(1): 245-254. Doi:10.11144/Javeriana.upsy13-5.pbad.

Picard, N., L. Saint-André y M. Henry. 2012. Manual de construcción de ecuaciones alométricas para estimar el volumen y la biomasa de los árboles: del trabajo de campo a la predicción. Las Naciones Unidas para la Alimentación y la Agricultura y el Centre de Coopération Internationale en Recherche Agronomique pour le Développement, Montpellier, Rome. 223 p.

Prodan, M., R. Peters, F. Cox. y P. Real. 1997. Mensura Forestal. Agroamerica. San José, Costa Rica. 586 p.

Protección de la Fauna Mexicana A.C. (Profauna). 2008. Zona Sujeta a Conservación Ecológica Serra de Zapalinamé. PROFAUNA. Saltillo, Coah., México. 87 p.

Ramos-Uvilla, J. A., J. García-Magaña, J. Hernández-Ramos, X. García-Cuevas., J. C. Velarde-Ramírez., H. J. Muñoz-Flores. y G. G. García E. 2014. Ecuaciones y tablas de volumen para dos especies de Pinus de la Sierra Purhépecha, Michoacán. Revista Mexicana de Ciencias Forestales 5(23): 92-109.                                                          Doi: 10.29298/rmcf.v5i23.344.

Registro Agrario Nacional (RAN). 2018. Perimetrales núcleos agrarios SHAPE Entidad Federativa Coahuila. https://www.inegi.org.mx/app/biblioteca/ficha.html?upc=702825236182               (7 de septiembre de 2018).

Sáenz R., J. T. y D. Castillo Q. 1992. Guía para la evaluación de cortadillo en el estado de Coahuila. Folleto Técnico Núm. 3. Campo Experimental Saltillo CIRNE-INIFAP. Saltillo, Coah., México. 13 p.

Schreuder, H. T. and M. S. Williams. 1998. Weighted linear regression using D2H and D2 as the independent variables. USDA Forest Service. Fort Collins, CO, USA. 10 p.

Segura, M. y H. J. Andrade C. 2008. ¿Cómo construir modelos alométricos de volumen, biomasa o carbono de especies leñosas perennes? Agroforestería en las Américas (46): 89-96.

Statistical Analysis System (SAS). 2017. SAS/ETS® 14.3 User’s Guide. SAS Institute Inc. Cary, NC, USA. n/p.

Schreuder, H. T. and M. S. Williams. 1998. Weighted Linear Regression Using D2H and D2 as the Independent Variables. USDA Forest Service. Fort Collins, CO, USA. 10 p.

Thomson, E. F., S. N. Mirza and J. Afzal. 1998. Predicting the components of aerial biomass of fourwing saltbush from shrub high and volume. Journal of Range Management 51: 323-235. Doi: 10.2307/4003418.

Van Der Werff, H. y F. Lorea. 1997. Flora del bajío y regiones adyacentes. Fascículo 56. familia: Lauraceae. INECOL. Xalapa, Ver., México. 58 p.

Velasco B., E., A. Arredondo G., M. C. Zamora-Martínez y F. Moreno S. 2009. Modelos Predictivos para la Producción de Productos Forestales No Maderables: Lechuguilla. Manual Técnico Núm. 2. CENID-COMEF. INIFAP. México, D.F., México. 56 p.

Villavicencio G., E. E. y H. Franco L. 1992. Guía para la evaluación de existencias de palma samandoca (Yucca carnerosana Trel.) en el estado de Coahuila. Folleto Técnico Núm. 2. Campo Experimental Saltillo CIRNE-INIFAP. Saltillo, Coah., México. 18 p.

Villavicencio G., E. E., A. Hernández R., C. N. Aguilar G. y X. García C. 2018. Estimación de la biomasa foliar seca de Lippia graveolens Kunth del sureste de Coahuila. Revista Mexicana de Ciencias Forestales 9(45): 187-207. Doi: 10.29298/rmcf.v9i45.139.

Walpole, R. E., R. H. Myers., S. L. Myers. y K. Ye. 2012. Probabilidad y estadística para ingeniería y ciencias. 9ª edición. Pearson Educación de México. Naucalpan, Edo. de Méx., México. 816 p.
