¹Instituto de Ciencias Agropecuarias, Universidad Autónoma del Estado de Hidalgo. México.

Progeny trials are experimental fields where the genetics of selected parent trees are evaluated. They bring together families from different origins that vary due to genetic and/or environmental factors. The objective of this research was to describe and analyze the foliar morpho-anatomy of Pinus patula from two progeny trials established at the Tlatoxca ranch in the state of Hidalgo and the Ojo de Agua ejido in the state of Veracruz, Mexico. Ten fascicles were collected from 64 trees. Cross-sections were made and stained with safranin and alcian blue. The structures were analyzed and described using an optical binocular microscope. The number of needles per fascicle, the number of stomatal rows (abaxial and adaxial surfaces), and the number of resin canals were subjected to an analysis of variance (P≤0.05). A single-layered epidermis composed of highly clarified rectangular cells was observed. The hypodermis is single-layered and bi-layered; 54 % of the needles at the Tlatoxca ranch exhibited a mostly bi-layered hypodermis, while at the Ojo de Agua ejido, 33 % did. Significant differences were found in the number of resin canals (P≤0.0001); at the Tlatoxca ranch, the number ranged from (2-)3(-6) with an average of 3.48, while at the Ojo de Agua ejido, the range was (0-)3(-4), with an average of 2.64. The resin canals were frequently located medially and internally, and exceptionally externally and septally. The environmental conditions of each plantation site influenced some morpho-anatomical characteristics of the P. patula needles in two two-year-old plantations.

Los ensayos de progenie son campos experimentales en los que se evalúa la genética de progenitores seleccionados. Reúnen familias de diferentes procedencias que varían por factores genéticos o ambientales. El objetivo de esta investigación fue describir y analizar la morfo-anatomía foliar de Pinus patula de dos ensayos de progenie establecidos en el rancho Tlatoxca en Hidalgo y el ejido Ojo de Agua en Veracruz, México. Se recolectaron diez fascículos de 64 árboles. Se realizaron cortes transversales y se tiñeron con safranina y azul-alcian. Mediante microscopio óptico binocular se analizaron y describieron las estructuras. El número de acículas por fascículo, el número de hileras estomáticas (cara abaxial y adaxial) y el número de canales de resina se sometieron a un análisis de varianza (P≤0.05). Se observó epidermis monoestratificada formada por células rectangulares altamente esclerificadas. La hipodermis es monoestratificada y biestratificada; 54 % de las acículas procedentes del rancho Tlatoxca exhibieron hipodermis mayormente biestratificada, y solo 33 % del ejido Ojo de Agua. Se verificaron diferencias estadísticas en el número de canales resiníferos (P≤0.0001); el material de Tlatoxca se ubicó en un intervalo de (2-)3(-6) y promedio de 3.48; los valores para el ejido Ojo de Agua fueron de (0-)3(-4), con promedio de 2.64. La posición de los canales de resina, fue media e interna, excepcionalmente externa y septal. Las condiciones ambientales de cada sitio de plantación influyeron sobre algunas características morfo-anatómicas de las acículas de P. patula, en dos plantaciones de dos años de edad.

Palabras clave: Acículas, anatomía foliar, canales de resina, endodermis, epidermis, hipodermis.

Environmental pressure can affect the morphological traits and phenotype of plants (Rodríguez-Laguna & Capo-Arteaga, 2005). Environmental conditions are directly related to growth and development (Fernández & Salvo, 2003) and play an important role in the morphological and anatomical variation of each organ (Sotolongo-Sospedra et al., 2022). This variation is influenced by abiotic factors such as temperature regimes, light quantity and availability (Tiwari et al., 2013), soil properties (Ghimire et al., 2014; Gianoli, 2004), and plant genetics (Chávez-García et al., 2022; Zhang et al., 2017).

Secondary leaves (needles) in pines (Pinus L.) genus are organs exposed to the environment and exhibit variation within and between different trees of the same species (Azcárraga-Rosette et al., 2022). They are responsible for photosynthesis, atmospheric carbon assimilation, and gas exchange (Donnelly et al., 2016). Needles adjust or modify their morphology and anatomical structure to withstand unfavorable habitat conditions (Geada-López et al., 2021; Nikolić et al., 2016).

Pinus patula Schiede ex Schltdl. & Cham. is a tall, evergreen tree that reaches up to 40 m in height and 100 cm in trunk diameter. It usually has a straight, cylindrical trunk. Fascicles of 3-4(-5) thin, lax, and pendulous needles, (11-)15-25(-30) cm long and 0.7-0.9 mm wide. This species is naturally distributed in Mexico, in the states of Chiapas, State of Mexico, Hidalgo, Oaxaca, Puebla, Querétaro, Tamaulipas, Tlaxcala, Veracruz, and Mexico City, on mountainous formations of the Sierra Madre Oriental (Dvorak et al., 2000; Farjon & Styles, 1997; Pérez-Luna et al., 2024); at an altitude of 1 500 to 3 100 m (Perry, 1991). P. patula has been evaluated through progeny trials due to its wide distribution and forestry importance (Salaya-Domínguez et al., 2012).

Progeny trials are forest plantations designed to evaluate selected individuals from diverse populations (Flores-Flores et al., 2014; Ipinza-Carmona, 1998). These trials allow for the description and analysis of natural variation and provide information for examining variability (Androsiuk et al., 2011) because they bring together families (progenies) from different origins that can be modified by environmental and/or genetic factors (Rodríguez-Vásquez et al., 2021; White et al., 2007).

Therefore, the research question posed was: What is the morpho-anatomical response of the Pinus patula leaf in two progeny trials established at different sites? Thus, the objective of this study was defined as characterizing and comparing the needle anatomy of P. patula trees in two progeny trials established at different sites in the central region of its natural distribution.

The study was carried out in two trials made up of 64 families of P. patula trees established in 2019 on the private property Tlatoxca ranch, in the Zacualtipán de Ángeles municipality, state of Hidalgo (20°37’49” N, 98°38’10” W) (Figure 1), with an altitude of 1 910 m, and the presence of a temperate humid climate C(m), precipitation of 1 144 mm and an average annual temperature of 17.1 °C (Fick & Hijmans, 2017). The second trial was established in the Ojo de Agua ejido property, in Huayacocotla municipality, state of Veracruz (20°28’21” N, 98°29’56” W), at an altitude of 2 310 m, with the presence of a temperate sub-humid climate C(w₂), precipitation of 1 004 mm and an average annual temperature of 14.7 °C (Fick & Hijmans, 2017) (Figure 1).

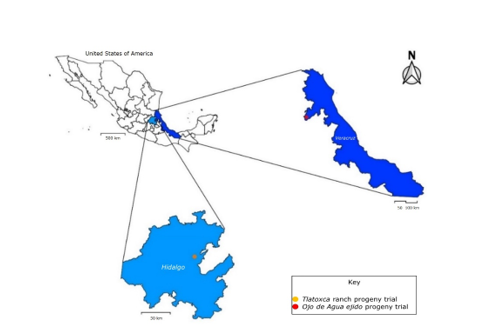

The dots indicate the two locations: Tlatoxca ranch(orange circle), Zacualtipán de Ángeles municipality, Hidalgo state, and Ojo de Agua ejido (red circle), Huayacocotla municipality, Veracruz state.

Figure 1. Location of two progeny trials of 64 families of Pinus patula Schiede ex Schltdl. & Cham. in the central area of its distribution.

The progeny trial at Tlatoxca ranch was established on land previously used as pasture, while the trial at Ojo de Agua ejido was established on abandoned agricultural land. Therefore, it was necessary to remove shrubby and herbaceous vegetation by harrowing the soil at both sites. The planting design was a square grid pattern; seedlings were planted in common stock with a spacing of 3×3 m between plants, and a row of trees was established around the perimeter as a buffer strip.

Ten fascicles were randomly collected from 40 trees at Ojo de Agua ejido and 24 trees at Tlatoxca ranch (due to the low survival rate of the families at the latter site). The fascicles were taken from the middle part of the canopy, only from first-order branches and without apparent damage. They were placed in 20 mL bottles with FAA (Formaldehyde:Glacial Acetic Acid:50 % Ethyl Alcohol, in a 5:5:90 ratio) for fixation (indefinitely).

The number of needles was counted from ten fascicles per tree, and the number of stomatal rows was obtained by taking stomatal impressions from the abaxial (convex) and adaxial (triangular) surfaces (Figure 2) of ten needles per tree randomly selected from the progeny trials.

Symbols: crm = Middle resin canal; end = Endodermis; epi = Epidermis; est = Stomata; fl = Phloem; hip = Hypodermis; hv = Vascular bundle; mpp = Splicated parenchyma mesophyll; tt = Transfusion tissue; xi = Xylem. Magnification: 10X.

Figure 2. Cross-section of a Pinus patula Schiede ex Schltdl. & Cham. leaf.

To obtain stomatal impressions, a layer of Vogue^® enamel was applied to the middle portion of the needles (on the abaxial and adaxial surfaces). These were then kept at room temperature for 10 minutes to dry. Finally, the impressions were transferred with transparent adhesive tape (Scotch^®) to microscope slides for viewing under a model WB-3T Iroscope^® optical microscope.

From the pine needles used for stomatal impressions, five were selected from each tree. Transverse sections were made freehand in the middle of each needle using a double-edged Gillette^® razor blade. These sections were then mounted on microscope slides with a mixture of Hycel^® synthetic resin and toluene (C₆H₅CH₃) from Sigma-Aldrich^® (USA) for observation at different magnifications under a model WB-3T Iroscope^® optical microscope to obtain photomicrographs.

For the description of the epidermis, hypodermis, endodermis, vascular bundles, and resin canals, photomicrographs were taken using a model VF Evolution™ camera (MediaCybernetics by QImaging, Canada) attached to a model BX41-TF Olympus^® binocular microscope (Olympus Corporation^®, Tokyo, Japan). The photomicrographs were processed using ImageJ^® version 1.50i (Ferreira & Rasband, 2012) and Photoshop^® version 13.0.121 (Adobe, 2012).

The quantitative variables —number of needles per fascicle, number of stomatal rows (abaxial and adaxial surfaces), and number of resin canals— were subjected to an analysis of variance, with a significance level of P≤0.05 (Geada-López et al., 2022; Rodríguez-Laguna & Capo-Arteaga, 2005; Zhang et al., 2017), using the following linear model:

Statistical analyses were performed separately for each progeny trial using Statistical Analysis System software version 9.00 (SAS Institute, 2022).

The analysis of variance for the number of needles per fascicle showed significant differences (P≤0.0001) between trees within the progeny trial (Table 1). At the Tlatoxca ranch, the fascicles had a lower number of needles (3-5) (Table 2); while at the Ojo de Agua ejido, the number was higher (between 3-6 needles).

Table 1. Analysis of variance of the quantitative variables of Pinus patula Schiede ex Schltdl. & Cham.progenies.

Variable	Site	MS	F value	*Pr>F*
NAF	Tlatoxca ranch	2.79	23.48	<0.0001
NAF	Ojo de Agua ejido	2.56	14.02	<0.0001
HAB	Tlatoxca ranch	8.71	13.73	<0.0001
HAB	Ojo de Agua ejido	4.96	6.81	<0.0001
HAD	Tlatoxca ranch	9.58	16.41	<0.0001
HAD	Ojo de Agua ejido	3.45	6.43	<0.0001

NAF = Number of needles per fascicle; HAB = Stomatal rows on the abaxial surface; HAD = Number of stomatal rows on the adaxial surface; MS = Mean square.

Table 2. Descriptive statistics of cuantitative variables in Pinus patula Schiede ex Schltdl. & Cham. progenies.

Variable	*Tlatoxca* ranch			*Ojo de Agua ejido*
Variable	*NAF*	*HAB*	*HAD*	*NAF*	*HAB*	*HAD*
Minimum	3.00	4.00	3.00	3.00	3.00	2.00
Mean	3.51	5.44	4.73	4.13	5.75	4.90
Maximum	5.00	7.00	7.00	6.00	11.00	7.00

NAF = Number of needles per fascicle; HAB = Stomatal rows on the abaxial surface; HAD = Number of stomatal rows on the adaxial Surface.

The cross-sections of the needles showed a single-layered epidermis with rectangular and elliptical cells, with thick, lignified, and highly clarified walls (Figure 3). Regarding the hypodermis, 67 % (27 trees) of the samples from the Ojo de Agua ejido presented mostly single-layered hypodermis (Figure 3A) and 33 % (13 trees) showed two-layered hypodermis (Figure 3B). In contrast, at the Tlatoxca ranch, where 46 % (11 trees) of the samples exhibited a mostly single-layered hypodermis and 54 % (13 trees) a two-layered hypodermis.

A = Mostly single-layered hypodermis; B = Two-layered hypodermis. Symbols: cri = Internal resin canal; epi = Epidermis; est = Stomata; hip = Hypodermis; mpp = Mesophyll of plicated parenchyma. Magnification: 40X.

Figure 3. Transverse anatomical section of the Pinus patula Schiede ex Schltdl. & Cham. leaf.

Significant differences (P≤0.0001) were found in the number of stomatal rows on the abaxial and adaxial surfaces. The needles exhibited an average of 5.44 (abaxial surface) and 4.73 (adaxial surface) in the Tlatoxca ranch (Table 2); while in the Ojo de Agua ejido, the average number of stomatal rows was higher, at 5.75 (abaxial surface) and 4.90 (adaxial surface).

The number of resin canals showed statistically significant differences (P≤0.0001) among the trees within the progeny trials (Table 3). The needles of the trees from the Tlatoxca ranch presented resin canals in midline (100 %), internal (100 %), rarely septal (16.6 %), and outer (8.3 %) positions (Figure 4); with a number of resin canals of (2-)3(-6) and an average of 3.48. The samples from the progeny trial at the Ojo de Agua ejido exhibited less variation in position, which was only midline (100 %) and internal (100 %); with a number of resin canals of (0-)3(-4), and an average of 2.64 (Table 4). In this study, resin canals in outer and septal positions (though not frequent) in P. patula leaves are reported for the first time.

Table 3. Results of the analysis of variance of the number of resin canals in Pinus patula Schiede ex Schltdl. & Cham. progenies.

Site	MS	F value	*Pr>F*
Tlatoxca ranch	3.05	7.06	<0.0001
	0.43
Ojo de Agua ejido	1.85	3.85	<0.0001
	0.48

A = Midline resin canal; B = Septal resin canal; C = Outer resin canal; D = Internal resin canal. Symbols: cre = Outer resin canal; cri = Internal resin canal; crm = Midline resin canal; crs = Septal resin canal; end = Endodermis; epi = Epidermis; hip = Hypodermis; mpp = Mesophyll of plicated parenchyma; tt = Transfusion tissue. Magnification: 40X.

Figure 4. Cross-section of the resin canals of Pinus patula Schltdl. & Cham.

Table 4. Descriptive statistics of the number of resin canals in Pinus patula Schiede ex Schltdl. & Cham. progeny.

Variable/ Statistics	Number of resin canals
Variable/ Statistics	*Tlatoxca* ranch	*Ojo de Agua ejido*
Minimum	2.00	0.00
Mean	3.48	2.64
Maximum	6.00	4.00

Endodermal thickening was absent in some samples (Figure 5A), but it was present in most needles in both progeny assays (Figure 5B); in the Tlatoxca ranch trial, 67 % of the needles showed thickening, while in the progeny trial at the Ojo de Agua ejido, it was 55 %.

A = Slight thickening of the outer periclinal walls of the endodermis; B = Thickening of the outer periclinal walls of the endodermis. Symbols: cri = Internal resin canal; end = Endodermis; fl = Phloem; hv = Vascular bundle; tt = Transfusion tissue; xi = Xylem. Magnification: 40X.

Figure 5. Anatomical cross-section of the Pinus patula Schiede ex Schltdl. & Cham. leaf.

The needles from the trial at the Tlatoxca ranch showed vascular bundles that were separate (21 %; Figure 6A), close together via the xylem (67 %; Figure 6B), and fused (12 %; Figure 6C); while in the Ojo de Agua ejido, only vascular bundles close together via the xylem (63 %) and separate (37 %) were observed.

A = Separate vascular bundles; B = Vascular bundles close together or fused via the xylem; C = Fused vascular bundles. Symbols: fl = Phloem; hv = Vascular bundle; xi = Xylem. Magnification: 40X.

Figure 6. Cross-section of Pinus patula Schiede ex Schltdl. & Cham. needles, vascular bundles.

The fascicles of P. patula consisted of 3-4 and 4-5 needles in the progeny trials, which corresponds to the studies carried out by Perry (1991) and Farjon and Styles (1997), who reported fascicles consisting of 3-4(-5) needles for the species. According to Iglesias-Andreu and Tivo-Fernández (2006), this trait (number of needles) is highly genetically controlled; however, it is affected by environmental factors. Furthermore, Rodríguez-Laguna and Capo-Arteaga (2005) found a positive correlation (0.785) between altitude and the number of needles per fascicle, which corresponds to the findings of this study, since the trees in the trial at the Tlatoxca ranch were located at an altitude of 1 910 masl. They showed 3-4, while in the Ojo de Agua ejido with an altitude of 2 310 masl they showed a greater number of needles per fascicle (4-5).

According to Farjon and Styles (1997), the shape of epidermal cells varies among species and can be square, rectangular (transversely oblong), or elliptical. For P. patula, the epidermis was composed of rectangular and elliptical cells. Bozkurt et al. (2023) state that the epidermis is an anatomical feature that can vary in terms of the shape and size of its constituent cells due to environmental factors such as temperature and precipitation, and Hengxiao et al. (1999) report that altitude affects epidermal thickness.

According to Toral et al. (2010), stomata are sensitive to changes in environmental conditions, Donnelly et al. (2016) report that its (intraspecific) variation can be influenced by genetic factors and Pérez-Del Valle et al. (2019) by abiotic factors of the plants' origin in the genus Pinus. Furthermore, Tiwari et al. (2013) reported that the number of stomatal rows plays an important role in plant adaptation to altitude, a variable with which it is correlated (r=0.9815). Regarding the number of stomatal rows, the differences found in this study could be due to the environmental conditions (at altitude) and genetic makeup of the progeny's origin (natural populations). When these factors interact in a homogeneous site such as the planting location, each progeny may express itself differently.

According to Farjon and Styles (1997) and Martínez (1992), the leaves of P. patula have a hypodermis composed of one (monostratified), usually two (bistratified), or three (tristratified) rows of unevenly distributed cells. These results were similar to those obtained in this study; however, the number of cell rows differed among the progeny trials, as most of the trees from Tlatoxca ranch exhibited a predominantly bistratified hypodermis. Nikolić et al. (2016) and Grill et al. (2004) reported that the hypodermis varies among individuals of the same species and increases in the number and cell rows when plants are affected by drought stress, as reported in other studies such as Pérez-Del Valle et al. (2019) and Geada-López et al. (2022) in natural populations of Pinus tropicalis Morelet where the number of cell layers that make up the hypodermis increase in drier sites.

Resin canals are structures specially developed by conifers and are related to plant protection against pathogens (Pérez-Olvera & Ceja-Romero, 2019). According to Kim et al. (2014), they are suspended in the mesophyll and can vary in their position (external, internal, medial, and septal). Furthermore, Tiwari et al. (2013) suggest that the position of resin canals may be a genetically controlled foliar anatomical characteristic in conifer species. For P. patula, Farjon and Styles (1997) reported resin canals frequently in the medial position, followed by internal. This coincides with the results found at Ojo de Agua ejido; however, it differs from the results found at the Tlatoxca ranch, where resin canals were frequently found in the medial and internal positions, but also rarely in the external and septal positions. The above suggests that the predominant or primary positions of the resin canals in this species are medial and internal, which agrees with the findings of Farjon and Styles (1997), who reported that the position of the resin canals varies among species and has therefore been used as a diagnostic and taxonomic classification characteristic in the genus Pinus. This suggests a greater degree of genetic than environmental control of this condition.

In species of the Pinus genus, canals are specialized structures for synthesizing, secreting, and storing resin (Yi et al., 2021). They can vary in number within the mesophyll (Pérez-Olvera & Ceja-Romero, 2019), and according to Farjon and Styles (1997) for P. patula, they have reported the presence of (1-)2-3(-4); this is within the range documented in this study, but a larger variation range of 0-6 is reported. On the other hand, Geada-López et al. (2021) report that environmental factors such as low water availability and high temperatures cause an increase in the number of resin canals within the mesophyll, and Donnelly et al. (2016) observed in Pinus sylvestris L. needles that the density (number of channels) increases in sites with lower humidity. Therefore, it can be deduced that the higher temperature at the progeny trial plantation site on the Tlatoxca ranch (17.1 °C) and the slope of the land (25%) hinder water retention in the soil. This results in lower water availability in the soil, which could have caused an increase in the number of resin canals. In contrast, the trees established at Ojo de Agua are located at a site with an average annual temperature of 14.7 °C and a slope of 3%, which favors water retention in the soil and consequently results in a lower number of resin canals.

According to Roden et al. (2009), the possible function of the endodermis is to act as a barrier to regulate or contain the passage of water (preventing loss) to the mesophyll and prevent plant dehydration during critical seasons (low temperatures and droughts), as well as to prevent ice formation on the leaf. Furthermore, García-Esteban et al. (2010) mention that the endodermis is a variable affected by the origin of the progeny, as well as the environmental and soil conditions of each origin site. In P. patula, it was observed that some progeny developed thickening in the external periclinal walls, possibly because they originate from different populations with different climates (temperature, precipitation, and humidity), soils, and exposures along the species' biological distribution corridor.

In both progeny assays of P. patula, needle cross-sections showed two vascular bundles (containing phloem and xylem) embedded in the transfusion tissue under the following conditions: separate, connate (closed by the xylem), and fused. According to Martínez (1992), hardwood pines (diploxylon section) such as P. patula have two vascular bundles. Farjon and Styles (1997) report that they can be connate (closed by the xylem), and Espinoza-Pelcastre et al. (2018) mention that they can sometimes be separated. In this study, the absence of sclerenchyma in the transfusion tissue region was consistently observed in all analyzed samples, unlike other species in which rows of sclerenchyma cells intermittently surround and usually divide the vascular bundles (Farjon & Styles, 1997).

Based on the observed information, the characteristic features of P. patula anatomy in the studied progeny trials can be considered to be: a single-layered epidermis composed of elliptical cells, a mostly single-layered but commonly bi-layered hypodermis, resin canals predominantly located in the medial position, followed by internal and exceptionally external and septal positions. Thickening of the outer walls of the endodermis was either present or absent, and vascular bundles were frequently close together via the xylem, with an absence of sclerenchyma in the transfusion tissue.

The environmental conditions of each planting site promoted modifications in the needles in terms of the number of stomatal rows, the number of hypodermal cell layers, and the number and position of resin canals and vascular bundles. The planting site established at Tlatoxca ranch recorded higher temperatures, a 25 % slope, and lower altitude, factors that resulted in a greater range of variation in the foliar morpho-anatomical traits of P. patula.

The authors thank the Secretaría de Ciencias, Humanidades, Tecnología e Innovación for the scholarship awarded to the first author (CVU: 1147341), which enabled this research. We also thank the Conacyt-Conafor Sectoral Fund for Forest Research, Development and Technological Innovation for the funding provided for project 291322: Establishment of regional asexual seed orchards and progeny trials of Pinus patula for the genetic evaluation of the parent trees; from which this research originated. The authors thank the Institute of Agricultural Sciences, Tulancingo University Campus of the Autonomous University of the State of Hidalgo (UAEH), for providing the space and equipment for this research.

Tomás Escobedo Luna and Sergio Hernández León: research work, permanent slides in the laboratory; Tomás Escobedo Luna, Diana Gómez García and Rodrigo Rodríguez Laguna: collection and classification the plant material (fascicles) for the progeny trials; Oscar Arce Cervantes: data analysis. Finally, the entire team reviewed and edited the manuscript.

Bozkurt, A. E., Coşkunçelebi, K., & Terzioglu, S. (2023). Variation in needle anatomy of scots pine (Pinus sylvestris L.) populations according to habitat and altitudinal zones in Türkiye. Šumarski list, 147(5-6), 215-225. https://doi.org/10.31298/sl.147.5-6.2

Chávez-García, A. S., Hernández-Ramos, J., Muñoz-Flores, H. J., García-Magaña, J. J., Gómez-Cárdenas, M., & Gutiérrez-Contreras, M. (2022). Plasticidad fenotípica de progenies de árboles de Pinus pseudostrobus Lindl. superiores en producción de resina en vivero. Madera y Bosques, 28(1), Artículo e2812381. https://doi.org/10.21829/myb.2022.2812381

Donnelly, K., Cavers, S., Cottrell, J. E., & Ennos, R. A. (2016). Genetic variation for needle traits in Scots pine (Pinus sylvestris L.). Tree Genetics & Genomes, 12, Article 40. https://doi.org/10.1007/s11295-016-1000-4

Dvorak, W. S., Hodge, G. R., Kietzka, J. E., Malan, F., Osorio, L. F., Stanger, T. K., & Brawner, J. T. (2000). Pinus patula. In Central America and Mexico Coniferous Resources Cooperative (Ed.), Conservation & testing of tropical & subtropical forest tree species (pp. 148-173). Grow Graphics. https://research.usc.edu.au/esploro/outputs/99450692102621

Espinoza-Pelcastre, C., Hernández-León, S., Gernandt, D. S., Arce-Cervantes, O., Rodríguez-Laguna, R., & González-Ávalos, J. (2018). Clave de identificación taxonómica con caracteres anatómicos foliares para especies de Pinus L. en Hidalgo. Revista Mexicana de Ciencias Forestales, 9(47), 28-49. https://doi.org/10.29298/rmcf.v9i47.167

Fernández, A. M., & Salvo, L. (2003). Variación del área de pared celular en Pinus radiata D. Don. Maderas. Ciencia y Tecnología, 5(1), 80-87. http://dx.doi.org/10.4067/S0718-221X2003000100007

Fick, S. E., & Hijmans, R. J. (2017). WorldClim 2: new 1-km spatial resolution climate surfaces for global land areas. International Journal of Climatology, 37(12), 4302-4315. https://doi.org/10.1002/joc.5086

García-Esteban, L., Martín, J. A., de Palacios, P., García-Fernández, F., & López, R. (2010). Adaptive anatomy of Pinus halepensis trees from different Mediterranean environments in Spain. Trees, 24(1), 19-30. https://doi.org/10.1007/s00468-009-0375-3

Geada-López, G., Sotolongo-Sospedra, R., & Pérez-Del Valle, L. (2022). Variación anatómica foliar en poblaciones naturales de Pinus tropicalis en Pinar del Río, Cuba. Revista del Jardín Botánico Nacional, 43, 155-170. https://revistas.uh.cu/rjbn/article/view/211?articlesBySimilarityPage=1

Geada-López, G., Sotolongo-Sospedra, R., Pérez-Del Valle, L., & Ramírez-Hernández, R. (2021). Diferenciación anatómica foliar en poblaciones naturales de Pinus caribaea var. caribaea (Pinaceae) en Pinar del Río y Artemisa, Cuba. Revista del Jardín Botánico Nacional, 42, 175-188. https://www.jstor.org/stable/48672484

Ghimire, B., Kim, M., Lee, J.-H., & Heo, K. (2014). Leaf anatomy of Pinus thunbergii Parl. (Pinaceae) collected from different regions of Korea. Korean Journal of Plant Taxonomy, 44(2), 91-99. https://doi.org/10.11110/kjpt.2014.44.2.91

Gianoli, E. (2004). Plasticidad fenotípica adaptativa en plantas. En H. Marino-Cabrera (Ed.), Fisiología ecológica en plantas. Mecanismos y respuestas a estrés en los ecosistemas (pp. 13-25). Ediciones Universitarias de Valparaíso. http://www2.udec.cl/~egianoli/04gianolifisioeco.pdf

Grill, D., Tausz, M., Pöllinger, U. T. E., Jiménez, M. S., & Morales, D. (2004). Effects of drought on needle anatomy of Pinus canariensis. Flora-Morphology, Distribution, Functional Ecology of Plants, 199(2), 85-89. https://doi.org/10.1078/0367-2530-00137

Hengxiao, G., McMillin, J. D., Wagner, M. R., Zhou, J., Zhou, Z., & Xu, X. (1999). Altitudinal variation in foliar chemistry and anatomy of yunnan pine, Pinus yunnanensis, and pine sawfly (Hym., Diprionidae) performance. Journal of Applied Entomology, 123(8), 465-471. https://doi.org/10.1046/j.1439-0418.1999.00395.x

Iglesias-Andreu, L. G., & Tivo-Fernández, Y. (2006). Caracterización morfométrica de la población de Pinus hartwegii Lindl. del Cofre de Perote, Veracruz, México. Ra Ximhai, 2(2), 449-468. https://www.redalyc.org/pdf/461/46120208.pdf

Kim, M. Y., Lee, J. H., & Heo, K. (2014). Leaf anatomy of Pinus thunbergii Parl. (Pinaceae) collected from different regions of Korea. Korean Journal of Plant Taxonomy, 44(2), 91-99. https://doi.org/10.11110/kjpt.2014.44.2.91

Nikolić, B., Bojović, S., & Marin, P. D. (2016). Morpho-anatomical traits of Pinus peuce needles from natural populations in Montenegro and Serbia. Plant Biosystems-An International Journal Dealing with all Aspects of Plant Biology, 150(5), 1038-1045. https://doi.org/10.1080/11263504.2014.1000999

Pérez-Del Valle, L., Geada-López, G., & Sotolongo-Sospedra, R. (2019). Diferencias anatómicas en acículas de Pinus tropicalis Morelet en edátopos extremos de pizarras y arenas blancas en Pinar del Río. Revista Cubana de Ciencias Forestales, 7(2), 225-239. http://scielo.sld.cu/scielo.php?script=sci_arttext&pid=S2310-34692019000200225

Pérez-Luna, A., López-Upton, J., Prieto-Ruíz, J. Á., Rodríguez-Laguna, R., & Barrera-Ramírez, R. (2024). Supervivencia, fenología vegetativa y floración de rametos de un huerto semillero asexual de Pinus patula. Bosque, 45(1), 151-161. http://dx.doi.org/10.4067/s0717-92002024000100151

Pérez-Olvera, C. de la P., & Ceja-Romero, J. (2019). Anatomía de la hoja de seis especies de Pinus del estado de Durango, México. Madera y Bosques, 25(1), Artículo e2511698. https://doi.org/10.21829/myb.2019.2511698

Roden, J. S., Canny, M. J., Huang, C. X., & Ball, M. C. (2009). Frost tolerance and ice formation in Pinus radiata needles: ice management by the endodermis and transfusion tissues. Functional Plant Biology, 36(2), 180-189. https://doi.org/10.1071/FP08247

Rodríguez-Laguna, R., & Capo-Arteaga, M. A. (2005). Morfología de acículas y conos en poblaciones naturales de Pinus arizonica Engelm. Ra Ximhai, 1(1), 131-152. https://www.redalyc.org/pdf/461/46110109.pdf

Rodríguez-Vásquez, M. E., Rodríguez-Ortiz, G., Enríquez-Del Valle, J. R., Campos-Ángeles, G. V., Velasco-Velasco, V. A., & Hernández-Hernández, A. (2021). Ensayos de progenies y huertos semilleros de especies forestales en México. Revista Mexicana de Agroecosistemas, 8(1), 79-88. https://revistaremaeitvo.mx/index.php/remae/article/view/273

Sotolongo-Sospedra, R., Geada-López, G., Pérez-Del Valle, L., & Armas-Crespo, N. M. (2022). Effect of the position of the needles in the crown of the tree on the foliar anatomy of Pinus caribaea Morelet var. caribaea Barrett and Golfari. Revista Cubana de Ciencias Forestales, 11(1), Artículo e787. http://scielo.sld.cu/scielo.php?pid=S2310-34692023000100007&script=sci_arttext

Tiwari, S. P., Kumar, P., Yadav, D., & Chauhan, D. K. (2013). Comparative morphological, epidermal, and anatomical studies of Pinus roxburghii needles at different altitudes in the North-West Indian Himalayas. Turkish Journal of Botany, 37(1), 65-73. https://doi.org/10.3906/bot-1110-1
